American mobility would soon depend on a petroleum product at bottom of refining process.



As the U.S. centennial neared, President Ulysses S. Grant directed that Pennsylvania Avenue be paved with Trinidad asphalt. By 1876, the president’s paving project covered about 54,000 square yards, according to the National Asphalt Pavement Association.

Pennsylvania Avenue being paved with asphalt circa 1900.

Pennsylvania Avenue was first paved in 1876-77 with bitumen imported from Trinidad. Thirty-one years later, a better asphalt derived from petroleum distillation was used to repave the famed pathway to the Capitol, above. Photo courtesy the Asphalt Institute.

“Brooms, lutes, squeegees and tampers were used in what was a highly labor intensive process. Only after the asphalt was dumped, spread, and smoothed by hand did the relatively sophisticated horse-drawn roller, and later the steam roller, move in to complete the job,” NAPA noted in its 1992 publication, A Century of Progress: The History of Hot Mix Asphalt.

Three decades after President Grant initiated the first paving, the road to the U.S. Capitol was repaved with new and far improved asphalt – made from petroleum. Ever since, the abundance of asphalt has made it unremarkable, yet without this residue from the petroleum refining process, bad roads may well have delayed much of the nation’s economic progress of the 20th century.

2022 AOGHS Membership Ad

Ninety-four percent of U.S. roads and streets are asphalt —  variously known as blacktop, tarmac, macadam, plant mix, asphalt concrete, bituminous concrete, and Hot Mix Asphalt.

As roads improved after WWI, workers apply oil-based asphalt to a road.

Asphalt left over from oil refining presented an improved alternative to natural bitumen. Photo courtesy the Asphalt Institute.

The domestic asphalt business began in 1595 with imports from a naturally occurring bitumen lake found on the island of Trinidad, just off the northern coast of South America. Sir Walter Raleigh first described the lake as a “plain” of asphalt and used it to re-caulk his ships. It was about 280 years before President Grant directed that Pennsylvania Avenue paved with the same Trinidad asphalt.

Petroleum Asphalt

The use of petroleum asphalt, a heavy byproduct from crude oil refining, presented a readily available alternative to imported bitumen. This refining process leftover offered an economic means of dramatically improving roadways.

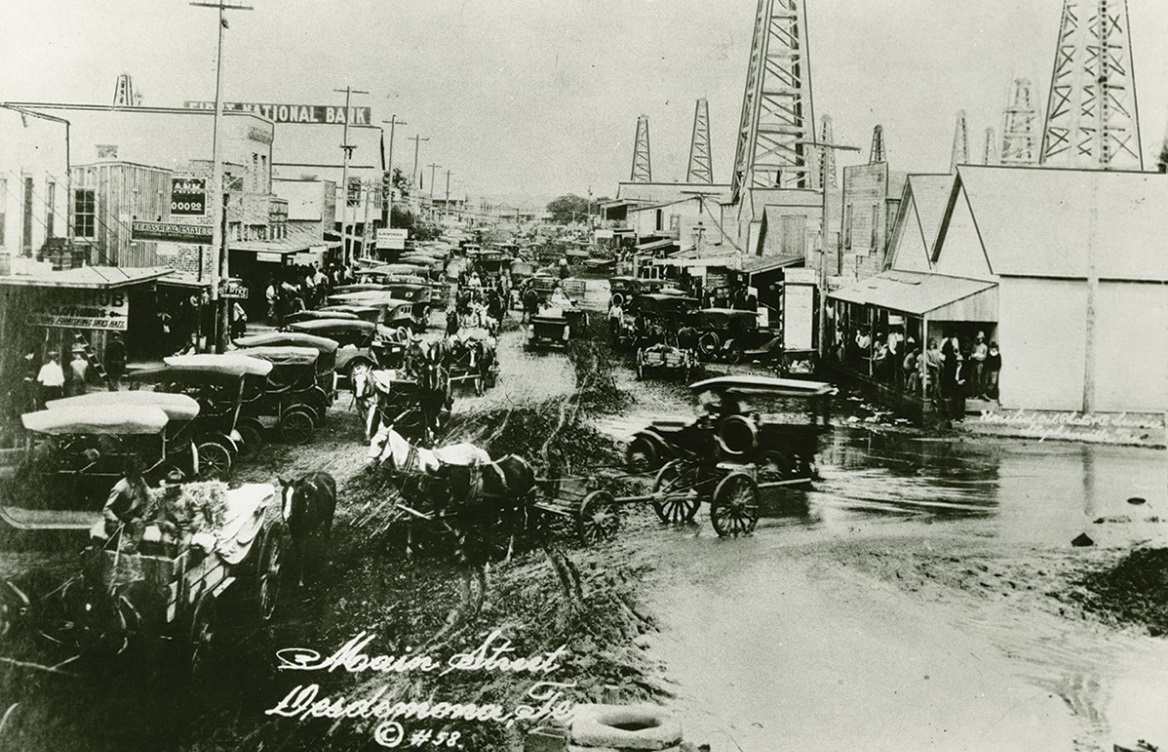

Autos in Desdemona, TX, stuck in muddy streets in front of oil derricks in 1918.

Main Street in Desdemona, Texas, at the height of the 1918 oil boom. Photo courtesy Dolph Briscoe Center for American History, University of Texas.

By 1902, the Texas Gulf Refining and Texas Refining companies produced asphalt, as did the Sun Oil Co. in Pennsylvania. The next year, Congress established a mechanical and chemical laboratory to test road materials. Within a decade, petroleum asphalt dominated the marketplace.

More than 55,000 automobiles traveled on the nation’s existing roads in 1904, and by 1910 the number of trucks and automobiles had risen to nearly 470,000, according to the Asphalt Institute’s Asphalt Magazine. Experiments began “mixing asphalt and heavy road oils with various sizes of aggregate.” The application of “Topeka Mix” (asphalt and small stones) provided a pavement for the first inter-city highways.

The thousands of automobiles that began rolling off assembly lines after World War I needed more and better roads. Innovations in both producing and laying asphalt included mechanized spreaders and mixers – reducing, but never eliminating, manual labor.

Asphalt for paving U.S. Interstates

During World War II, runway surfaces had to handle larger and heavier loads, prompting innovation in asphalt composition and paving technology. Road building became a huge industry to accommodate America’s postwar boom.

Missouri officials pose in 1956 as they launch the U.S. interstate system.

Missouri launches the U.S. interstate system after “inking a deal for work on U.S. Route 66 – now Interstate 44,” which stretches across south central Missouri and is a major corridor to the West Coast.

Responding to public demand, Congress passed the State Highway Act and allotted $51 billion to the states for road construction.

The Highway-Aid Act of 1956 provided 90 percent federal funding for a “system of interstate and defense highways” — the Eisenhower administration noted a need to efficiently evacuate major  cities in the event of a nuclear attack. The act made it possible for states to afford construction of the network of national limited-access highways, which would eventually reach more than 40,000 miles.

In August 1956, Missouri became the first state to award a contract with the new interstate construction funds, “inking a deal for work on U.S. Route 66 – now Interstate 44 – in  Laclede County,” noted the Missouri Department of Transportation.

“There is no question that the creation of the interstate highway system has been the most significant development in the history of  transportation in the United States,” the state agency added. Advanced pavement materials now include compositions such as Open Graded Friction Course, and Stone Matrix Asphalt, better known as “Superpave.”

2022 AOGHS Membership Ad

By 2021, the Federal Highway Administration (FHA) reported that 2,844,000 miles of U.S. roads were paved with a variety of bituminous surfaces. Promising new technologies have also evolved, according to FHA.

Although asphalt comes from the bottom of the fractional distillation process, its contribution to America’s mobility makes it one of the petroleum industry’s most important products. Every day it passes largely unnoticed under millions of tires. Also see America on the Move.

Asphalt making Science History

Physicists in at Trinity College Dublin photographed one of the most anticipated drips in science on July 11, 2013.

“After 69 years, one of the longest-running laboratory investigations in the world has finally captured the fall of a drop of tar pitch on camera for the first time,” noted the science journal Nature a few days later.

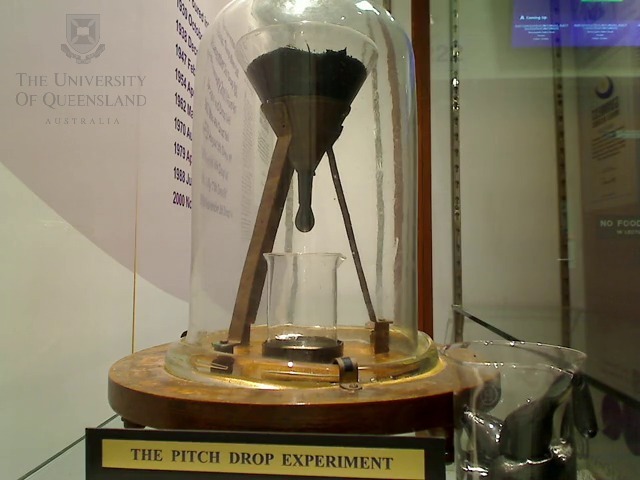

Pitch drop experiment photo of drip.

Begun in 1927, another “Pitch Drop Experiment” continues in Australia today. Photo courtesy University of Queensland.

Considered one of the longest-running laboratory investigations in the world, the pitch-drop experiment was set up in 1944 to demonstrate the high viscosity or low fluidity of pitch — a naturally hydrocarbon also known as bitumen or asphalt.

Australian Asphalt Drip

An even older “Pitch Drop Experiment” in Australia, which began in 1927, continues. It missed filming its latest drop in 2000 because the camera was offline, notes writer Richard Johnston. It should take seven to 13 years for a drop to form — but only a tenth of a second for it to fall.

Both experiments demonstrate the high viscosity or low fluidity of pitch — also known as bitumen or asphalt — a material that appears to be solid at room temperature, but is in fact flowing, albeit extremely slowly,” he explained. The Trinity College team has estimated the viscosity of the pitch in the region of two million times more viscous than honey.

The Australian experiment has been running since 1927 at the University of Queensland in Brisbane, which Guinness World Records lists as the world’s longest-running laboratory experiment. The experiment has yielded nine drops, with another now forming. The ninth pitch drop fell in April 2014. The wait for the Australia experiment’s tenth drip continues here.
