Atomic Energy Commission robot inspired offshore petroleum industry’s remotely operated vehicles.



In 1960, Shell Oil and Hughes Aircraft companies began modifying an advanced but landlocked “Manipulator Operated Robot” — known as MOBOT — into one that could operate underwater. The result led to the ROV (Remotely Operated Vehicle), which revolutionized offshore petroleum exploration and production.

Much of today’s offshore oil and natural gas industry relies on remotely operated vehicles that can trace their roots back to Howard Hughes, Jr. In the late 1950s, Hughes Aircraft Company developed its Manipulator Operated Robot – MOBOT – for the Atomic Energy Commission.

Working on land, the robot performed tasks in environments too radioactive for humans. Weighing 4,500 pounds with hydraulically powered steel claws and television eyes, MOBOT was linked by a 200-foot cable to the operator, who used pistol grips and levers to control it.

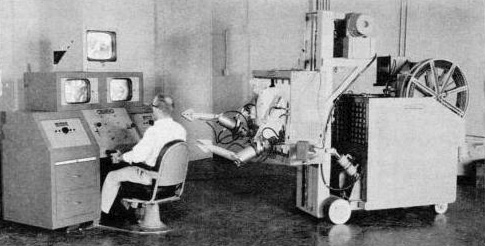

Popular Science article shows scientist testing early remotely operated robot.

“Manipulator operated robots” were built for the Atomic Energy Commission to work in a radioactive environment. Photo courtesy September 1960 Popular Mechanics article, “Marvelous Mobot Will Do Work Too Hot For Man.”

In 1960, Popular Science magazine described the advanced technology in “Marvelous Mobot Will Do Work Too Hot For Man.” The article reflected the era’s fascination with science fiction and new technologies. “With electronic nerves, hydraulic muscles, and TV eyes, a robot whose arms are quite capable of playing golf or snuggling a blonde is ready to live far more dangerously than that,” the article began.

An accompanying photograph showed the “murderous impulse” of a mobot stalking a scientist, but as the caption explained, “Never fear, he (the scientist) has it all under control” by watching three screens.

The U.S. offshore oil industry quickly saw the potential of “underwater electronic nerves, hydraulic muscles, and TV eyes.”

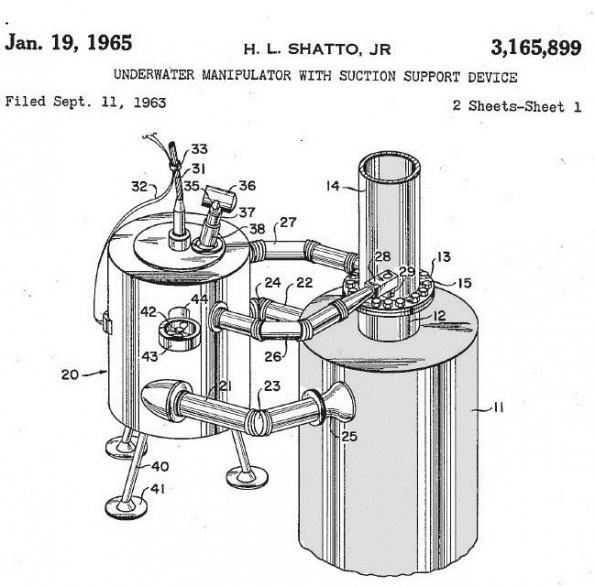

offshore robot ROV 1965 patent drawing of Shatto robot

Howard L. Shatto Jr. received a 1965 patent for an “underwater manipulator with suction support device.” He will help make Shell Oil an early leader in offshore oilfield development.

As the search for oil reached deeper into the ocean’s depths, traditional hard hat diving technology advanced to keep up. The advent of saturation diving and helium/oxygen mixtures extended depths and diving times.

Deep Wells Offshore

Saturation diving technologies helped reduce the dangers of decompression sickness — “the bends,” but there were limits to what divers could accomplish in increasingly hazardous depths (learn more in Deep Sea Roughnecks).

Shell Oil Company took the lead in transforming Hughes’ MOBOT into what would one day become known as ROVs. Beginning in 1960, a series of patents described, “a remotely controlled manipulator device for carrying out operations underwater at an assembly position at the top of a well.”

2022 AOGHS Membership Ad

Patents by Howard Shatto Jr. — named to the Oilfield Energy Center’s Industry Pioneers Hall of Fame in 2000 — and others made Shell Oil Company the early leader in offshore development. Shatto explained how an underwater device patented in January 1965 particularly related to the offshore petroleum industry:

“A recent development at offshore locations is the installation of large amount of underwater equipment used in producing oil fields and gas fields situated many miles from shore,” he noted. “Many of the wells are being drilled in water up to 600 feet deep, a depth greater than divers can safely work.”

offshore robot ROV Howard L. Shatto Jr. portrait

Howard L. Shatto Jr. (1924-2018) became known as “the father of dynamic positioning,” according to the Marine Technology Society.

The inventor added that a primary objective of his design is to provide a “manipulator device” with articulated arms that can secure itself to a wellhead on the ocean floor. “Each of the arms is provided at its outer end with a suitable suction means in the form of a suction cup,” he explained.

Swimming Socket Wrench

Shatto led in the design of the first subsea wellheads using an ROV, noted Oilfield Energy Center in 2000. He also conceived automatic controls for dynamic positioning of a vessel to “controlled surge, sway and yaw independently and resolved thruster commands.”

A Yale graduate, Shatto developed ROVs for the first subsea BOPs and creating the world’s first automatic control for dynamic positioning on Shell’s Eureka core drillship in 1960, according to the Marine Technology Society.

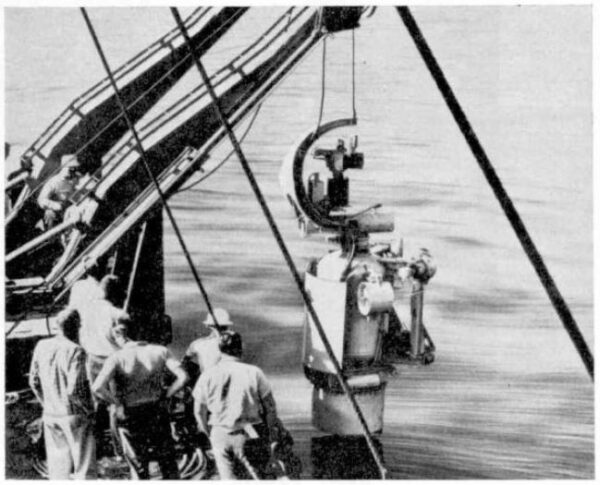

Shell Oil Company MOBOT featured in Meccano Magazine, February 1963.

Developed for Shell Oil Company, MOBOT’s first job was to complete a well off the coast of Santa Barbara, California. Photo courtesy Meccano Magazine, February 1963.

“Known as the father of Dynamic Positioning, Howard Shatto’s contributions to the offshore oil and gas industry, and the marine industry as a whole, go well beyond DP,” note the society’s Dynamic Positioning Committee after the offshore technology pioneer’s death in 2018.

Making a MOBOT

When Hughes Aircraft Company built the first marine MOBOT for Shell Oil Company, the company adapted sonar and television cameras for navigation, propellers for propulsion, and an umbilical cable for control. With a mechanical arm, the offshore robot could turn bolts, operate valves and attach control hoses and guide lines.

“It was basically a swimming socket wrench,” reported a Shell engineer, describing the 14-foot, 7,000-pound underwater robot. Because of the necessity to pay traditional divers to rescue a clumsy, often entangled offshore robot, early models also became known as “a diver’s best friend.”

Shell Oil successfully used a MOBOT on a wildcat well in 250 feet of water off the coast of Santa Barbara, California, in October 1962. “It can swim, see, hear, and has a ‘nose’ that turn screws, work valves, and grip pipes and hoses,” noted the editor of Meccano Magazine in February 1963.

“It can also wield a wire brush and other tools,” added the editor.

Over the next 10 years, MOBOTs worked on 24 offshore wells – operating to depths of 1,000 feet for extended periods. The technology helped revolutionize the offshore industry worldwide.

Military Subsea Technology

During the Cold War, the U.S. Navy developed its own deep-sea technology for both submarine rescue and antisubmarine purposes. In 1963, the nuclear attack submarine USS Thresher sank with the loss of all hands 220 miles off the coast of Cape Cod, Mass.

The only vehicle capable of reaching a depth of 8,400 feet was the Navy’s manned bathyscaph Trieste, which found and photographed the wreckage. Unfortunately, Trieste had little capability to retrieve objects.

Offshore robot ROV 1966 nuclear bomb recovery CURV.

The Navy’s CURV I (Cable-Controlled Underwater Recovery Vehicle) recovers a lost nuclear bomb from the Mediterranean in 1966 near Palomares, Spain.

In January 1966 near the coast of Spain, a U.S. Air Force B-52 collided with its refueling tanker, scattering debris and four 70-kiloton hydrogen bombs over the Spanish coast. Three of the nuclear bombs were recovered on land, but the fourth was lost in the Mediterranean Sea.

With a combination of divers and the Woods Hole Oceanographic Institution’s manned submersible, Alvin, the missing atomic bomb was located at a depth of 2,850 feet. To retrieve it, the Navy employed its new CURV I (Cable-Controlled Underwater Recovery Vehicle), which snagged the bomb and pulled it to the surface.

Worldwide publicity briefly elevated the visibility of marine robotics, but the technology mostly remained submerged in military, scientific, and offshore oil and gas industry applications.

Secrets of the Titanic

In 1982, Robert Ballard of the Woods Hole Oceanographic Institute — and a former naval intelligence officer — approached the Navy as a possible source of funding to find the wreck of the Titanic.

offshore robot ROV manned submersible Alvin

In 1986, Robert Ballard brought the manned submersible Alvin, above, to the wreck of the Titanic. He also utilized an ROV — a fiber optic “tethered eyeball.”

The Navy was more interested in developing Ballard’s fiber optic video system for deep sea surveys, and its potential to examine debris fields of two nuclear submarines USS Thresher (lost April 10, 1963) and USS Scorpion (lost May 22, 1968).

2022 AOGHS Membership Ad

With Navy support, the oceanographer’s highly classified mission was presented to the public as only “a search for Titanic.” Ballard used the Argo, a towed undersea video camera sled, to survey and photograph both submarine wrecks, yielding invaluable data to his covert government sponsors.

Completing the secret mission’s objectives with 12 days to spare, Ballard’s team used Argo to find the Titanic on September 1, 1985, and received worldwide acclaim. For 73 years Titanic had remained hidden at a depth of 12,460 feet. One year later, Ballard brought another Woods Hole veteran deep-diving manned submersible, Alvin, to the Titanic

Then, for the first time, the public was able to see deeper into Titanic’s ghostly decks through the fiber optic eyes of the ROV Jason Jr.  Later joined by another unmanned submersible, the Hercules, the two highly sophisticated ROVs brought undersea technology to prime-time television.

Offshore Petroleum Production

While such “Eyeball Class” ROVs were well suited for marine archeology, observation and inspection, the demands of deep offshore oil production demanded further development of heavy “Work Class” ROVs that could be equipped with a variety of tools.

Offshore oil ROVs modern remotely operated vehicle

Remotely operated vehicles (ROVs) like this one are most widely used by the offshore industry. New technologies allow ROVs to access even greater depths. Photo courtesy Oceaneering International.

Today, such an offshore robot can weigh ten thousand pounds, lift over one thousand, and operate at 10,000 foot depths. The petroleum industry is the principle user of this class of ROV. Further offshore exploration is prompting yet a new generation of marine robotics – the Autonomous Underwater Vehicle (AUV) which abandons the use of a physical cable connection to the mother ship.

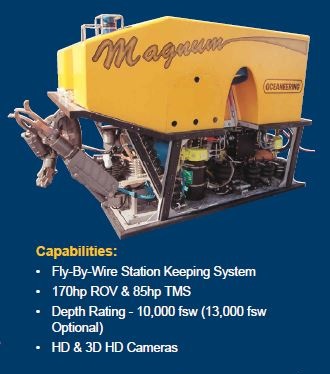

offshore robot ROV Ocean Engineering Magnum ROV

Fiber optics link data signals between the 6,750-pound vehicle and the surface. Image courtesy Ocean Engineering.

Defined as “a crewless, non-tethered submersible which operates independent of direct human control,” AUVs make detailed maps of seabed topography and hazards that could impact proposed oil and natural gas offshore infrastructure.

Modern, survey class AUVs remain an emerging offshore technology — separated from Howard Hughes’ simple MOBOT by only 50 years. Also see Petroleum Survey finds U-166.
