The evolution of technologies for fracturing geologic formations to increase oil and natural gas production.



Ever since America’s earliest oil discoveries, detonating dynamite or nitroglycerin downhole helped increase a well’s production. The geologic “fracking” technology commonly used in oilfields after the Civil War would be significantly enhanced when hydraulic fracturing arrived in 1949.

Modern hydraulic fracturing — popularly known as “fracking” — can trace its roots to April 1865, when Civil War Union veteran Lt. Col. Edward A. L. Roberts received the first of his many patents for an “exploding torpedo.”

In May 1990, Pennsylvania’s Otto Cupler Torpedo Company “shot” its last oil well with liquid nitroglycerin as the company abandoned using nitro while continuing to pursue a fundamental oilfield technology. Company President Rick Tallini credited Col. Roberts’ original patents for leading to the modern fracturing systems.

history of hydraulic fracking E.A.L. Roberts portrait and frac drawing.

In 1862, E.A.L. Roberts was appointed Lieutenant Colonel of the Union Army. In December he “conceived the idea of opening the veins and crevices in oil-bearing rock by exploding an elongated shell or torpedo therein.” Images courtesy Drake Well Museum, Early Days of Oil, Princeton University Press.

“Our business since Colonel Roberts’ day has concerned lowering high explosives charges into oil wells in the Appalachian area to blast fractures into the oil bearing sand,” Tallini said. Roberts’ torpedo company operated in the Allegheny region of Titusville, where the U.S. petroleum industry began in August 1859 with the first American well specifically drilled for oil.

Civil War Veteran’s “Torpedo”

Civil War veteran Col. Edward A.L. Roberts led a New Jersey Regiment at the bloody 1862 Battle of Fredericksburg, Virginia. Amid the chaos of the battle, he saw the results of explosive Confederate artillery rounds plunging into the narrow millrace (canal) that obstructed the battlefield.

history of hydraulic fracking Roberts torpedo company stock certificate

When E.A.L. Roberts founds his company in 1865, his many patents give him a monopoly on torpedoes needed by the oil industry.

Despite heroic actions during the battle, he was cashiered from Union Army in 1863. But the Virginia battlefield observation gave him an idea that would evolve into what he described as “superincumbent fluid tamping.”

Roberts received his first patent for an “Improvement in Exploding Torpedoes in Artesian Wells” on April 25, 1865. His oilfield invention of fracturing — or fracking — to improve a well would vastly improve oil production from America’s young petroleum industry. Many more of the technology patents would follow.

The Roberts torpedo system would eclipsed earlier methods, including black powder or dropping sticks of dynamite down a well, which often collapsed boreholes and ruined oil production. Sadly, the same month Roberts was awarded his first exploding torpedo patent, a failed seeker of oil riches assassinated President Lincoln. John Wilkes Booth left Pennsylvania’s oilfields in June 1864 after a botched fracturing attempt at a well drilled by his Dramatic Oil Company.

history of hydraulic fracking oil well explosive patent drawing 1866

Early “torpedoes” were set off by a weight dropped along a suspension wire.

Roberts received another U.S. Patent (No. 59,936) in November 1866. This improved device would become widely known as the “Roberts Torpedo.” The advanced petroleum production technology used a column of water on top of an explosive device downhole to more effectively breakup rock formations at the oil-producing depths of wells.

The Titusville Morning Herald newspaper reported: Our attention has been called to a series of experiments that have been made in the wells of various localities by Col. Roberts, with his newly patented torpedo. The results have in many cases been astonishing.

The torpedo, which is an iron case, containing an amount of powder varying from fifteen to twenty pounds, is lowered into the well, down to the spot, as near as can be ascertained, where it is necessary to explode it.  It is then exploded by means of a cap on the torpedo, connected with the top of the shell by a wire.

Filling the borehole with water provided Roberts his “fluid tamping” to concentrate concussion and more efficiently fracture surrounding oil strata. The technique had an immediate impact — production from some wells increased 1,200 percent within a week of being shot – and the Roberts Petroleum Torpedo Company flourished.

Roberts charged $100 to $200 per torpedo and a royalty of one-fifteenth of the increased flow of oil. Attempting to avoid Roberts’ fees, some oilmen hired unlicensed practitioners who operated by “moonlight” with their own devices. The inventor was outraged.

Roberts hired Pinkerton detectives and lawyers to protect his patent — and is said to have been responsible for more civil litigation in defense of a patent than anyone in U. S. history. He spent more than $250,000 to stop the unlawful “torpedoists” or “moonlighters.”

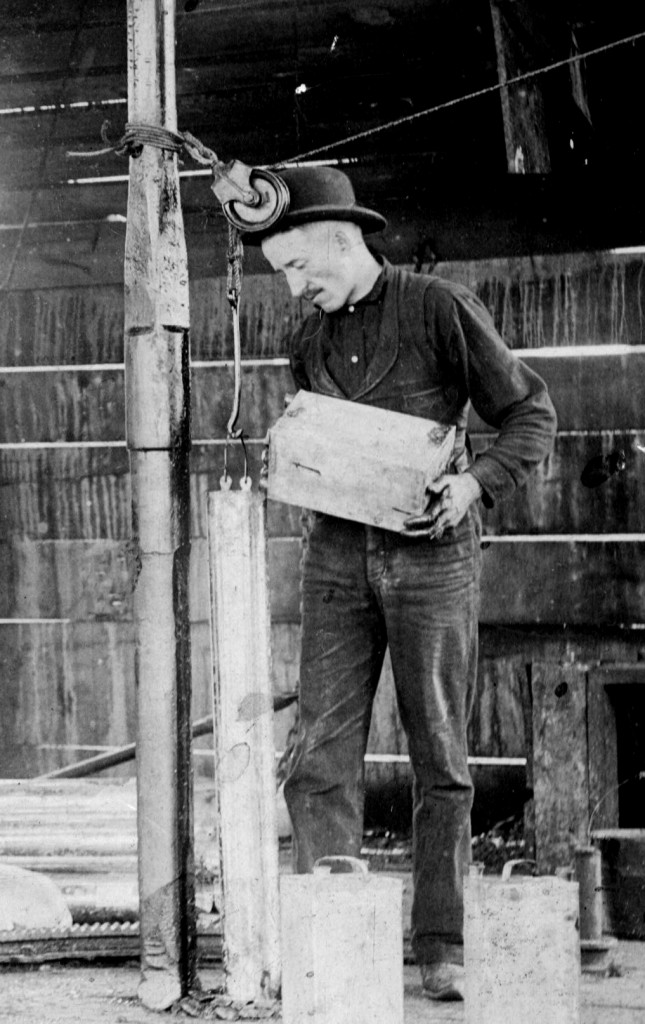

history of hydraulic fracking old photo of nitro pouring

Preparing to “shoot” a well drilled by a cable-tool rig.

Applied legally or illegally, by 1868 nitroglycerin was preferred to black powder, despite its frequently fatal tendency to detonate accidentally.

“A flame or a spark would not explode Nitro-Glycerin readily, but the chap who struck it a hard rap might as well avoid trouble among his heirs by having had his will written and a cigar-box ordered to hold such fragments as his weeping relatives could pick from the surrounding district,” noted John J. McLauren in 1896 in his book Sketches in Crude Oil — Some Accidents and Incidents of the Petroleum Development in all parts of the Globe.

shooters to hydraulic fracturing preparing nitro to fracture a well

Pouring nitroglycerin was risky enough in late 19th century oilfields. Doing it for an illegal well “shooting” led to the term “moonlighting.”

Roberts died a wealthy man on March 25, 1881, in Titusville. His heirs sold Roberts Petroleum Torpedo Company to its employees, who continued in business as the Independent Explosives Company. By then, the Civil War Union veteran’s revolutionary “fracking” technology was being applied by the petroleum industry worldwide.

At Bartlesville in America’s Indian Territory, a crowd gather in 1897 to watch the fracturing of an oilfield discovery well.  The driller’s young stepdaughter dropped “go devil” detonating device down the wire line in well bore to set off the waiting nitroglycerin. The explosion caused the Nellie Johnstone No.1 well to erupt a geyser of “black gold” that impressed onlookers and launched the Oklahoma petroleum industry (see First Oklahoma Oil Well).

Otto Cupler Torpedo Co.

Rick Tallini’s historic Otto Cupler Torpedo Company at one time produced its own nitroglycerin in plants near Titusville — until the last plant exploded in 1978. Tallini’s company continued using liquid nitroglycerin until 1990 – when the last of the nitroglycerine supplier’s plant exploded in Moosic, Pennsylvania.

A century earlier, farther east of the oilfields at Oil City and Titusville (and the notorious boom town of Pithole), the giant Bradford oilfield had its own well fracturing service companies. A notable one was Mrs. Alford’s Nitro Factory

Tallini’s final well shooting on May 5, 1990, used up the last of his Otto Cupler Company’s liquid nitro reserves. The “go devil” of the earlies days had been replaced with downhole times, another industry technology milestones (see Zebco Reel Oilfield History). His company would continue shooting wells, but with safer, modern explosives and procedures.

Otto Cupler Company established a small museum on Dottyville Road in Titusville, to preserve for future generations some remarkable artifacts and documents from the earliest “fracking” of wells.

AOGHS membership ad for 2020

Related to petroleum formation fracturing, development of well perforation was another important downhole technology. Ira McCullough of Los Angeles in 1939 received patented a multiple bullet-shot casing perforator, “in which projectiles or perforating elements are shot through the casing and into the formation.” His innovation of firing at several levels through a borehole’s protective casing enhanced the flow of oil. Learn more in Downhole Bazooka.

First Commercial Hydraulic Fracturing

On March 17, 1949, a team of petroleum production experts converges on an oil well about 12 miles east of Duncan, Oklahoma — to perform the first commercial application of hydraulic fracturing. Later that day, Halliburton and Stanolind company personnel successfully fractured another oil well near Holliday, Texas.

 first commercial hydraulic fracturing in 1949 about 12 miles east of Duncan, Oklahoma.

The first commercial hydraulic fracturing of an oil well took place in 1949 about 12 miles east of Duncan, Oklahoma.

An experimental well fractured two years earlier in Hugoton, Kansas — home of a massive natural gas field — had proven the possibility of hydraulic fracturing for increased gas well productivity. Erle Halliburton (1892-1957) had patented an improved method for cementing oil wells in 1921, two years after founding his well service company in Ardmore, Oklahoma.

By 1988, the technology will have been applied nearly one million times. The technique had been developed and patented by Stanolind (later known as Pan American Oil Company) and an exclusive license issued to Halliburton to perform the process. In 1953, the license was extended to all qualified service companies.

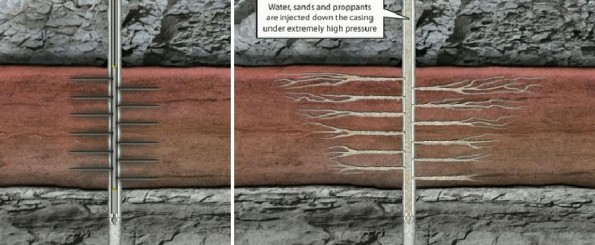

shooters to hydraulic fracturing geology illustration

To complete a new well, explosive charges are lowered by a wire line to perforate the steel casing, cement and producing formation. After the charges are electronically fired, hydraulic fracturing greatly enhances oil and natural gas production.

According to a spokesman from Pinnacle, a Halliburton service company:

Since that fateful day in 1949, hydraulic fracturing has done more to increase recoverable reserves than any other technique, and Halliburton has led the industry in developing and applying fracturing technology.

The company representative also noted, “In the more than 60 years following those first treatments, more than two million fracturing treatments have been pumped with no documented case of any treatment polluting an aquifer — not one.”

shooters to hydraulic fracturing Erle Halliburton statue

An Erle Halliburton statue was dedicated in 1993 in Duncan, Oklahoma.

Issues concerning water withdrawals for hydraulic fracturing in areas of low availability, spills during the handling of fracturing fluids, and injection of the fluids with inadequate mechanical integrity were among issues raised by the Environmental Protection Agency in its 2016 report, Hydraulic Fracturing For Oil And Gas.

Shale Fracturing Technology

In the 1980s, a sudden technological advance in fracturing shale formations led to the U.S. vastly increasing its oil and especially natural production that continues to this day.

Although credit should be shared with others, America’s first “shale boom” began with the innovative thinking of one independent producer from Galveston, Texas, George P. Mitchell, (1919 – 2013). The technology began with steering a well horizontally into producing geological formations.

In the 1980s, Mitchell Energy & Development Corp. began experimenting with hydraulic fracturing in horizontal wells in the Barnett Shale near Fort Worth. The company was one of a few that began finding ways to extract large amounts of natural gas from shale formations. Others followed as geologists recognized the potential of natural gas rich shales in Arkansas and Pennsylvania — and oil shale North Dakota.

shooters to hydraulic fracturing US map of shale plays

America’s modern shale boom began in the 1980s when independent producer George Mitchell experimented with ways to economically produce natural gas from the Barnett shale in Texas. May 2011 map courtesy Energy Information Administration.

In the historic Williston Basin of North Dakota, producing oil since 1951, billions of barrels of new production came from the Bakken shale. Read more in First North Dakota Oil Well.

Earthquakes

The largest earthquake in Oklahoma known to be induced by hydraulic fracturing came in 2019, according to the United States Geological Survey, adding that the majority of the state’s earthquakes since 2009 have resulted from injected wastewater, not fracturing fluids.

“Wastewater disposal is a ​separate ​process in which fluid waste from oil and gas production is injected deep underground far below ground water or drinking water aquifers,” USGS Explained. “In Oklahoma over 90 percent of the wastewater that is injected is a byproduct of oil extraction process and not waste frack fluid.”

In the Permian Basin of West Texas, a major U.S. location of production from shale fields, the Texas Railroad Commission (RRC) in September 2021 reported six earthquakes since February 2020 registered at least a 3.5 magnitude on the Richter scale. The RRC identified the disposal of the large amounts of water used to break apart rock formations as a likely contributor to seismic activity.

The commission, “asked drillers to cut back on the amount of wastewater they’re pumping underground,” according to World Oil. “It’s a fairly unusual move by the regulator, which hasn’t been as active as its counterpart in Oklahoma in trying to prevent earthquakes linked to fracking.”

Industry Perspectives

Petroleum industry trade groups have established websites to educate a skeptical public about fracturing technologies. According to one, “There is no shortage of questions about domestic energy production — what technologies are used? What does it mean for our environment? How does it create jobs? What is hydraulic fracturing, anyway?”

shooters to hydraulic fracking modern rig and equipment

Hydraulic fracturing has been used to increase production on millions of oil and natural gas wells since 1949.

 Energy in Depth — offers links to the industry’s research and has long maintained: “While the first commercial fracturing job was conducted in the 1940s, the technique has been applied to the vast majority of U.S. oil and natural gas wells to enhance well performance, minimize drilling, and recover otherwise inaccessible resources.”

The website, a project of the Independent Petroleum Association of America (IPAA), reports that about 90 percent of operating U.S/ wells have been fractured — “and the process continues to be applied to boost production in unconventional formations — such as tight gas sands and shale deposits.”

For another perspective about down-hole explosives to increase production, see Project Gasbuggy tests Nuclear “Fracking.”

Col. Roberts at Battle of Fredericksburg

Some Civil War historians might know of Col. Edward A. L. Roberts leading one of the many ill-fated Union charges up Marye’s Heights. Below are American Oil & Gas Historical Society research documenting little-known details from his service records at the National Archives, Washington, D.C.

Oil well “shooting” or “fracking” torpedo inventor Col. Edward A. L. Roberts (1829-1881) was buried in Woodlawn Cemetery at Titusville, Pennsylvania. A simple headstone includes only by his name and the military rank he held at the Battle of Fredericksburg 19 years earlier.

shooters to hydraulic fracturing civil was battle painting

“We went into action under a most galling and deadly fire of shot and shell,” reported Col. Edward Roberts. An 1888 lithograph depicts the Army of the Potomac crossing the Rappahannock at the Battle of Fredericksburg in December 1862. Image courtesy Library of Congess.

For four months during the Civil War, the man who would someday revolutionize oil and natural gas production technology served as Lt. Colonel with the 28th New Jersey Volunteer Infantry Regiment. He fought at Fredericksburg in December 1862 – while awaiting results from his court martial, which had convened just weeks earlier.

As the military court deliberated specifications of “intoxication on dress parade,” Roberts’ regiment marched into the bloody fields and town Fredericksburg, Virginia. On December 13, the 28th New Jersey was the center of Gen. Ambrose Burnside’s first doomed assault on the fiercely defended Marye’s Heights. Fourteen more failed assaults would follow.

shooters to hydraulic fracturing Col. Edward A. L. Roberts grave

Col. Edward A. L. Roberts is buried in Titusville, Pennsylvania — where the U.S. oil industry began in 1859.

The 28th charged into carefully positioned cannons. Confederate Col. Edward Porter Alexander had declared: “A chicken could not live on that field when we open on it.”

Alexander was right. No Union soldiers would reach Marye’s Heights that cold December day. Crossing a canal and open ground, brigade after brigade could not dislodge the Confederates from their defenses behind a sunken road and stone wall. Union casualties exceeded 12,000.

AOGHS membership ad for 2020

When his commander was shot in the face during the 28th’s charge, Roberts assumed command. In his after action report, Roberts wrote, “We went into action under a most galling and deadly fire of shot and shell, and continued in action until near dark. Officers and men conducted themselves well.”

A month later, Roberts’ court martial verdict was published under General Order No. 2. Despite his heroic actions during the battle, among the Civil War’s bloodiest, he was found guilty and ordered to be cashiered, effective January 12, 1863. Prior to the court’s verdict, Roberts had attempted to resign but this was strangely characterized as “tendering resignation in face of enemy.” Roberts’ service as a Union officer was over in 1863. However, he would soon make history in Pennsylvania oilfields.

Moonlighters shoot Wells

Andrew Dalrymple secretly shot his last well on February 5, 1873, when he and his wife were killed in a nitroglycerin explosion at Dennis Run, Pennsylvania. He allegedly had been “moonlighting” — illegal oil well shooting — in the Tidioute oilfield.

Fracking shooters roberts marker

A Pennsylvania historical marker notes the 1865 demonstration of the invention Union Col. E.A.L. Roberts.

Nitroglycerine was a powerful but dangerous means of fracturing oil-producing rock formations. The technology had been patented, its use rigorously protected. Pouring nitroglycerin was risky enough in the late 19th century. Doing it illegally at night made it more so.

“The Dalrymple torpedo accident at Tidioute brings to light the fact that nitroglycerine, or other dangerous explosives, are used, stored and manipulated secretly in places little suspected by the general public,” reported the Titusville Morning Herald. “A large amount of this dangerous material has lately been stolen from the various magazines throughout the country, ” the newspaper added. “This species of theft is winked at by some parties, who are opposed to the Roberts torpedo patent.”
