Petroleum exploration and production technologies evolved from 1890s platforms on piers and lakes.



The U.S. offshore drilling for oil began in the late-19th century on lakes and at the ends of Pacific Ocean piers. Until an innovative Kerr-McGee drilling platform in 1947, no offshore drilling company had ever risked drilling beyond the sight of land.

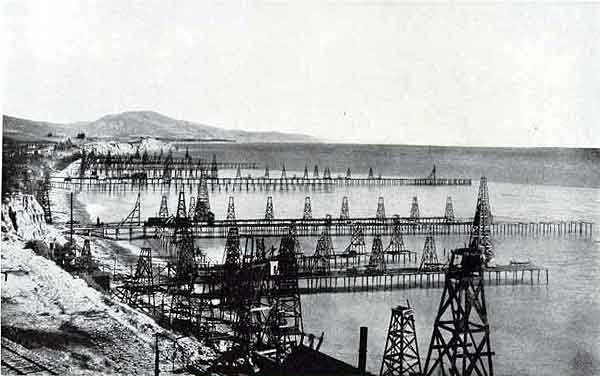

View of California oil piers with wooden derricks circa 1900.

Many of the earliest offshore oil wells were drilled from piers at Summerland in Santa Barbara County, California. Circa 1901 photo by G.H. Eldridge courtesy National Oceanic & Atmospheric Administration.

In 1896, as enterprising businessmen pursued California’s prolific Summerland oilfield all the way to the beach, the lure of offshore production enticed Henry L. Williams and his associates to build a pier 300 feet out into the Pacific — and mount a standard cable-tool rig on it.

An 1869 offshore rig patent with drawing by Thomas Roland.

Although never built, Thomas Rowland’s 1869 design for an offshore platform was far ahead of its time.

By 1897 this first offshore well was producing oil and 22 companies soon joined in the boom, constructing 14 more piers and over 400 wells within the next five years. The Summerland offshore field produced for 25 years — fueling the growth of California’s economy.

Piers, Platforms and a Patent

In 1894, Henry Williams drilled two wells on a California beach. He drilled another in 1895 with encouraging results. This led Williams and others to exploring for oil offshore the next year. They constructed piers and drilled wells, leading to the realization that the Summerland oilfield extended offshore. This would be the first offshore field developed in the nation by drilling offshore wells from piers. – From Santa Barbara County records

In 1911, Gulf Refining Company abandoned the use of piers. It drilled Ferry Lake No. 1 on Caddo Lake, Louisiana, using a fleet of tugboats, barges, and floating pile drivers. When the well came in at 450 barrels per day, Gulf constructed platforms every 600 feet on each 10-acre lakebed site.

The Caddo Lake wells — completed over water without a pier connection to shore — have frequently been called America’s first true offshore drilling.

Caddo lake oil derricks in Louisiana circa 1911.

Cable-tool derricks on Louisiana’s Caddo Lake, circa 1911.

A petroleum company based in Pittsburgh, Pennsylvania, drilled one of the first “over water” oil wells in 1911, according to historian Bob Bowman of the East Texas Historical Association. “In the early 1900s, 27-year-old Walter B. Pyron, of Blossom, Texas, a production foreman for Guffy Oil Company, noticed gas bubbles rising from Caddo Lake,” Bowman explained in 2006. “He and other Guffy employees rowed across the lake, lighting strings of the bubbles”.

Support the American Oil & Gas Historical Society

“In early May, 1911, after months of hard work and battles with mosquitoes, alligators and moccasins, the Ferry Lake No. 1 was drilled to a depth of 2,185 and began producing 450 barrels of oil a day,” reported Bowman. Pyron convinced his superiors at Gulf Oil Corporation — the successor of Guffy Petroleum Company — to drill on the lake.

Rigs on an Ohio Lake

Ohio oil documents record hundreds of oil wells pumping far out into a lake — 20 years before drillers ventured into the waters of Louisiana’s Caddo Lake.

offshore oil history Oil St. Marys Lake Ohio  oil wells

Derricks on Grand Lake St. Marys in Ohio, circa 1890s. Photograph courtesy of Joyce L. Alig, from the Mercer County Historical Society, Celina, Ohio.

As early as 1891, the first submerged oil wells were drilled from platforms built on piles in Grand Lake St. Marys in Ohio, notes historian Judith L. Sneed in “The First Over Water Drilling: The Lost History Of Ohio’s Grand Reservoir Oil Boom.” Learn more in Ohio Offshore Wells.

Even earlier, some historians say the true beginning of the modern offshore industry can be traced to an 1869 U.S. patent. Thomas Fitch Rowland of Greenpoint, New York, patented a “submarine drilling apparatus” on May 4, 1869.

Rowland’s design included a fixed, working platform for drilling offshore to a depth of almost 50 feet. The anchored, four-legged tower — with telescoping legs “suitable hydraulic attachments or devices” — resembles modern offshore platforms. Learn more about An 1869 Offshore Rig Patent.

offshore oil history drilling rig size comparison chart

Gulf of Mexico Technologies

In 1938, Pure Oil and Superior Oil Company built a freestanding drilling platform in the Gulf of Mexico — despite many logistics, engineering and communications challenges.

Support the American Oil & Gas Historical Society

They hired a Houston engineering and construction company, Brown & Root Marine Operators to build a 320-foot by 180-foot freestanding wooden deck in 14-feet of water about a mile offshore. The chosen drilling site was near Creole, Louisiana.

Using onshore building criteria and intuition, the Creole platform was designed to withstand winds of 150 mph and constructed 15 feet above the water. Three hundred treated yellow pine pilings were driven 14 feet into the sandy bottom.

Illustration of salt dome geology trapping oil.

Onshore salt domes were recorded as early as 1890 by the Geological Survey of Texas.

The Superior-Pure State No. 1 well was successful – but was wiped off its pilings by a hurricane in 1940. The platform was quickly rebuilt and put back into production in the four million barrel field. “It may be tentatively assumed that the Gulf of Mexico is a potential source of salt-dome oil,” reported geologist Orval Lester Brace in 1941.

“Whether or not it will ever be economically feasible to explore these waters for the domes that must exist is a question for the future to answer,” Brace added. Salt dome geologic formations had attracted petroleum companies since the 1901 Spindletop discovery at Beaumont, Texas.

Kerr-McGee dramatically answered the salt dome question in 1947 with an experimental offshore rig.

Not much equipment specifically designed for offshore drilling existed and exploration remained an extraordinarily speculative and risky business venture. An offshore dry hole could easily end with huge capital costs sunk into construction of large, permanent rig platforms.

Kerr-McGee drilling platform, known as Kermac Rig No. 16.

This Kerr-McGee drilling platform, known as Kermac Rig No. 16, was the first offshore rig in the Gulf of Mexico that was out of sight of land. Photo courtesy New Orleans Times-Picayune.

Nevertheless, Dean McGee of Kerr-McGee Oil Industries Inc. partnered with Phillips Petroleum and Stanolind Oil & Gas Co. to secure leases for exploratory wells in the Gulf of Mexico. They hired Brown & Root to build a freestanding platform 10 miles out to sea.

Kerr-McGee’s Kermac No. 16

“We decided to explore the areas where the really potential prolific production might be — salt domes — the good ones on land were gone, but we could move out in the shallow water and, in effect, get into a virgin area where we could find the real class-one type salt dome prospect,” McGee said.

Vessels were needed to provide supplies, equipment, and crew quarters for the drilling site, 43 miles southwest of Morgan City, Louisiana. The gradually sloping Gulf of Mexico reached only about 18-feet deep at the drilling site.

offshore oil history oil platforms gulf of mexico map

Offshore platforms attract and significantly increase numbers and species of fish. By the 1990s, 75 percent of recreational fishing trips off Louisiana visited one or more rig sites. Photo courtesy Pensacola Fishing Forum.

A second platform would be built about eight miles from the first at Ship Shoal Block 28. Sixteen 24-inch pilings were sunk 104 feet into the ocean floor to secure a 2,700 square foot wooden deck.

The Kermac No. 16 well stood in almost 20 feet of water, 10 miles at sea. Drilling began on September 10, 1947, and the biggest hurricane of the season arrived a week later, with winds of 140 mph. Kerr-McGee had $450,000 invested in the project.

Support the American Oil & Gas Historical Society

Both platforms were evacuated during the hurricane, but damage was minimal. Drilling promptly resumed. On November 14, the Kermac No. 16 well began producing 40 barrels of oil per hour.

“Spectacular Gulf of Mexico Discovery. Possible 100-Million Barrel Field – 10 Miles at Sea,” proclaimed the Oil & Gas Journal. Kermac No.16 would produce 1.4 million barrels of oil and 307 million cubic feet of natural gas by 1984.

New Offshore Records

By the end of 1949, 11 oil and natural gas fields were found in the Gulf of Mexico with 44 exploratory wells, according to the National Ocean Industries Association (NOIA), which notes that the industry continued to through the 1950s.

In June 1954, a revolutionary mobile platform concept was launched from its shipyard in Louisiana. The design and technologies of Mr. Charlie later would be declared a mechanical engineering landmark. Learn more in Mr. Charlie, First Mobile Offshore Drilling Rig.

Also in 1954, a contract for the first jack-up oil rig was signed by Houston-based Zapata Oil, led by future U.S. President George H.W. Bush. The inventor, R.G. LeTourneau, had designed an all-weather drilling platform that could be easily converted to a stable structure by lowering legs on two sides and one end of the hull.

“The LeTourneau Mobile Offshore Platform was basically a large, shallow-draft barge, equipped with three electromechanically operated lattice type legs,” explained a 2005 article in Drilling Conractor magazine. LeTourneau’s first jackup, Scorpion, was launched in 1955 from a Vicksburg shipyard on the Mississippi River.

Today’s offshore energy industry benefits come from the hard lessons learned from of open water experience, according to NOIA. Compared to the limits of the early technology, “achievements will no doubt pale in comparison to what the future of offshore exploration will bring.”

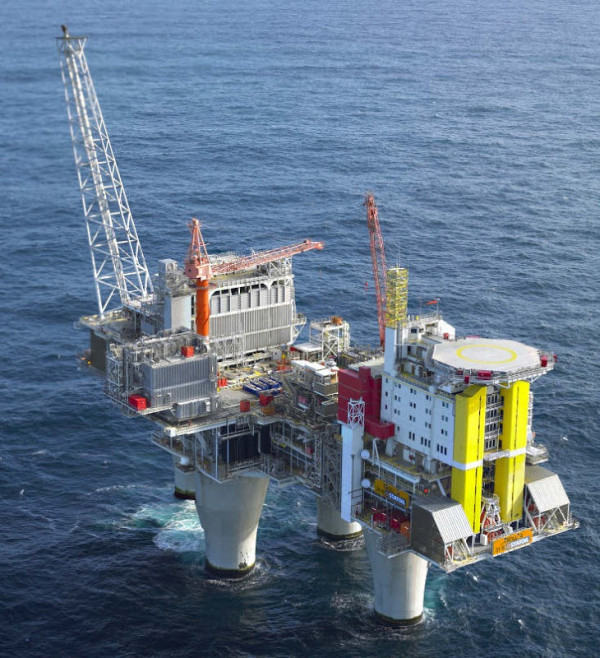

The "Troll A" natural gas platform operated by Statoil.

The “Troll A” natural gas platform operated by Statoil. In 1996, it was not only “among the largest and most complex engineering projects in history,” but also “the largest object ever to be moved by man across the surface of the Earth.” Photo courtesy Amusing Planet.

Federal revenue generated from the production of oil became second only to the nation’s income taxes. But deeper wells mean higher costs — and far greater technical challenges.

The National Ocean Industries Association notes: “As the industry entered the last decade of the 20th century, advancing technology ensued. New depth records for drilling reached 7,625 feet in the Gulf of Mexico.”

offshore oil history Offshore magazine cover

Bell Helicopters formed Petroleum Bell Helicopters Company, which ran this ad in U.S. News and World Report on November 12, 1954.

In the North Sea, the Troll A  natural gas platform stands in the North Sea in 1,000 feet of water and is 1,500 feet high. According to a March 2013 article posted at Amusing Planet, in 1996 the platform set the Guinness World Record for largest offshore gas platform. “The title now belongs to the Petronius Platform in the Gulf of Mexico, which stands 2,000 feet above the ocean floor.”

Support the American Oil & Gas Historical Society

The first use of helicopters offshore was at the request of Kerr-McGee and Humble Oil. A Bell Helicopter advertisement from 1954 is preserved at the Ocean Star Offshore Drilling Rig and Museum.

A flat area on an LST — from World War II “landing ship, tanks” — anchored next to Humble Rig 28 served as landing pad for one of the first helicopters to be flown offshore. Helicopters would become a common way for getting crews to and from remote platforms.

Fish Habitats

The heavy components of an offshore rig, sometimes assembled at the rig’s destination, have a further use. Scientists have studied new roles for petroleum platforms as artificial marine habitats.

Whether placed as an artificial reef or a working (producing petroleum) structure, state and federal investigations have been found rigs to increase the algae and invertebrates that attract and significantly increase numbers and species of fish.

For more about converting old petroleum platform into undersea nature reserves, see the federal program, Rigs to ReefsAlso see related articles, Deep Sea Roughnecks and ROV — Swimming Socket Wrench  (a history of remotely operated undersea vehicles).




Big Fin Squid

On November 11, 2007, a mile and a half underwater, a petroleum company’s remote control submersible camera captured a rarely seen Magnapinna squid.

offshore rig ROV photo of a “big fin” squid 1.5 miles underwater.

A platform’s ROV photographed a “big fin” squid 1.5 miles underwater.

The video obtained by National Geographic News shows the alien-like squid loiter above the seafloor in the Gulf of Mexico. The clip — from Shell Oil Company’s Perdido production site — marks the first sighting of a Magnapinna or “big fin” squid near oil development. Marine biologists now partner with petroleum companies.




Offshore Oil and Gas Resources

Gulf of Mexico oil production reached record levels in 2017, accounting for 17 percent of total U.S. oil production; federal offshore natural gas production in the Gulf accounted for 5 percent. More than 47 percent of U.S. refining capacity is located along the Gulf Coast.

Support the American Oil & Gas Historical Society

From 1980 to 1999, about 7.4 billion barrels of oil were produced in all federal waters. Of that production, less than a thousandth of one percent spilled — lower than the natural seepages of oil from the sea floor, according to the U.S. Coast Guard.

According to the National Academy of Sciences, more than 60 percent of all oil found in seawater is not from wells, but from natural seepage (the largest emitting 1,000 barrels of oil a week); 32 percent comes from shipping and run-off from land. Four percent can be attributed to tanker spills.

To meet increasing U.S. demand while addressing environmental concerns, new technologies have led to drilling rigs capable of drilling 250 miles offshore to ocean depths exceeding 10,000 feet. In 2021, about 3,500 petroleum-related structures stood in the Gulf of Mexico, creating the largest artificial reef system in the world.

2021 Offshore Production

Offshore Federal production in fiscal year 2020 reached about 641 million barrels of oil and 882 billion cubic feet of gas, “almost all of which was produced in the Gulf of Mexico, accounting for about 15 percent of U.S. oil production and two percent of domestic natural gas production, according to the Bureau of Ocean Energy management (BOEM).

Gulf of Mexico crude oil production in 2021 averaged 1.7 million barrels per day, according to the Energy Information Administration (EIA).

_______________________

Recommended Reading:  Offshore Pioneers: Brown & Root and the History of Offshore Oil and Gas (2011);  U.S. Geological SurveyThe Offshore Imperative: Shell Oil’s Search for Petroleum in Postwar America (2009); Women of the Offshore Petroleum Industry tell Their Stories (2019). Your Amazon purchase benefits the American Oil & Gas Historical Society. As an Amazon Associate, AOGHS earns a commission from qualifying purchases.

_______________________

The American Oil & Gas Historical Society (AOGHS) preserves U.S. petroleum history. Become an AOGHS annual supporting member and help maintain this energy education website and expand historical research. For more information, contact bawells@aoghs.org. Copyright © 2023 Bruce A. Wells. All rights reserved.

Citation Information: Article Title – “Offshore Petroleum History.” Authors: B.A. Wells and K.L. Wells. Website Name: American Oil & Gas Historical Society. URL:https://aoghs.org/offshore-history/offshore-oil-history. Last Updated: November 7, 2023. Original Published Date: January 10, 2010.
